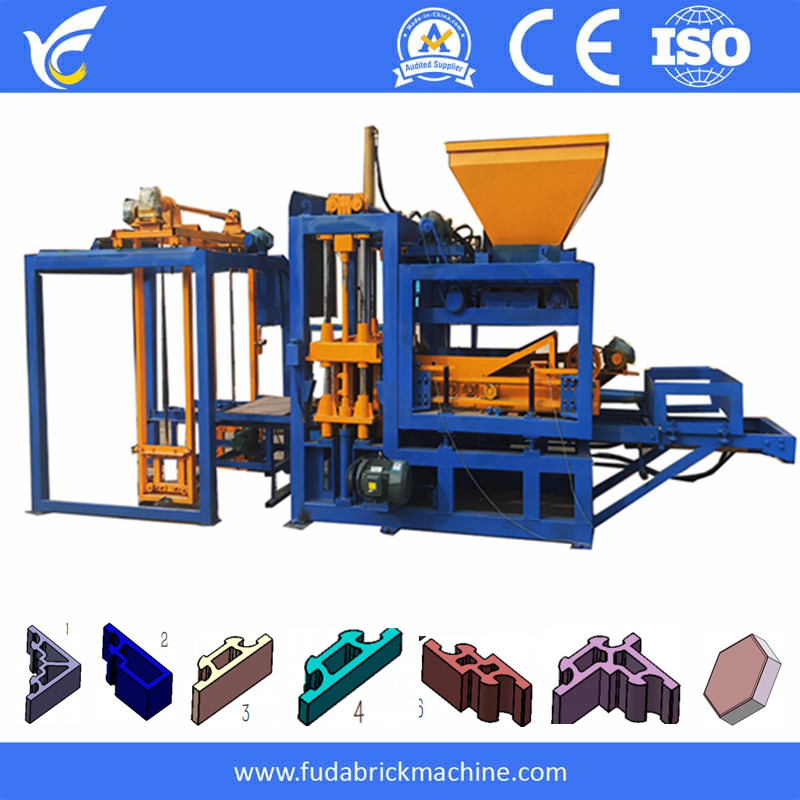

QT4-18 CHB fully automatic concrete block making machine price list paver brick molding machine for sale

The QT4-18 fully automatic concrete block making machine is designed for efficient production of high-quality concrete blocks. It combines advanced technology with user-friendly operation, making it suitable for businesses looking to start or expand their construction material production without a large investment. 1. Fully Automatic Operation: The machine features a fully automatic PLC control system that automates the mixing, molding, vibrating, and ejecting processes. This reduces labor costs and increases production efficiency. 2. High-Quality Vibration System: The machine uses a powerful vibration system to ensure uniform compaction of the concrete, resulting in strong and durable blocks. 3. Versatile Molds: The molds can be easily changed to produce different types and sizes of blocks, offering flexibility to meet various market demands. 4. Durable Construction: Made from high-quality steel and components, the QT4-18 is built to withstand continuous operation and harsh working conditions. 5. Ease of Maintenance: The machine is designed for easy maintenance and cleaning, ensuring minimal downtime and prolonged service life. 6. Safety Features: Incorporates multiple safety features to protect operators and ensure safe operation. 7. Compact Design: Its smaller size makes it suitable for spaces with limited room, allowing for flexible placement in various production environments. Applications: The QT4-18 is ideal for small to medium-scale construction projects, precast factories, and businesses involved in the production of construction materials. It is widely used in the production of building blocks, road pavements, garden walls, and other concrete products. The QT4-18 fully automatic concrete block making machine is a reliable and efficient solution for producing high-quality concrete blocks. Its fully automatic operation, ease of use, and versatility make it a valuable investment for businesses looking to enhance their production capabilities and meet market demands without a high initial investment.
  • QT4-18

  • Fuda

Availability:
Quantity:

auto block molding machine

QT4-18 CHB concrete block brick machine concrete paver brick molding machine for sale

A)Introduction

  1. A.Host machine

  2. B.Hydraulic station

  3. C.PLC controller(Taiwan brand)

  4. D.Block transfer platform

  5. E.Belt conveyor

  6. F.JQ500 mixer

  7. G.Stacker

B)Feaures:

  1. Use Taiwan Vigor PLC control system with touch screen

  2. Use Japan Yuken Valves,which automatically adjust the oil flow and pressure as per specific working requirements,to buffer the hydraulic cylinder when working;uses integrated high pressure and soft oil pipes,with easy installation

  3. Uses multi-shaft rotating and compulsor feeding,which greatly improves the density and intensity of the blocks,and reduces the feeding times well

  4. Integrated structure of vibrating and moulding platforms,which reduces the weight of the machine,and improves the vibrating efficiency

图片5_副本

                                                                                    Hydraulic valve

IMG_1166_副本

                                                                         Rotate feed material car

IMG_0675_副本

                                                                                       Vibrate box

B)Technical Parameters of QT4-18 hollow block machine/paver interlock brick machine

Dimension

2450*2300*2150mm

Weight

3800kgs

Power

19.45kw

Voltage

220v/380v/415v/440v etc.

Molding cycle

18-20s

Vibrate force

60KN

Vibration Frequency

4600r/min

Pallet size

850-550-25


C)QT6-15 hollow block machine production capacity

Name

Hollow block

(400*200*200mm)

Solid brick

(240*115*53mm)

Holland paver

(200*100*60mm)

S paver

(225*112.5*60mm)

I paver

(200*100*60mm)

Pcs/pallet

4

26

14

12

8

Pcs/hour

720

4680

2520

2160

1440

Pcs/8 hours

5760

37440

20160

17280

11520

Note:1.Molds are changeable,could be produce various block via change mold

         2.Molds are customized according to client’s requirements

brick mold type

fully automatic brick making machinery

fully automatic brick making machinery

automatic block making production line

D)Certification

6证书





8应用_副本

7客户_副本




详情页_10

详情页_12


3.类目

Q:How will be the machine shipped?

A:The machine will be shipped completely,also we will be test the machine well before shipping

Q:How long of the warranty?

A:1 year

Q:If have molds stocked?

A:No.all molds are customized according to customer's requirements,so without stocked.

Q:If machine could be customized?

A:Yes.we have professional engineer team,could be supply useful and professional suggestion on machine

Q:Whats the payment terms?

A:1)30% T/T before production.70% balance before shipping

   2)Western Union

   3)100% LC at sight
